• Backup power supply
• Output capacity: 1100 VA / 660 Watts
• Nominal output voltage: 230V
• Output connections: 6 “universal” sockets
• LED status display

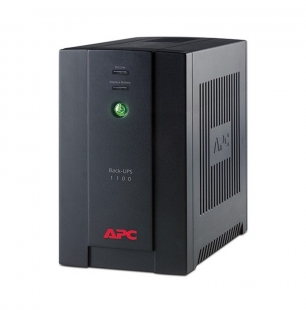

Product details of APC BX1100CI-MS UPS 1100VA Input 230V / Output 230V (Black)

APC's Back-UPS 1100 provides enough battery backup power to allow you to work through short length power outages. It is specifically designed for areas with rugged power conditions featuring Automatic Voltage Regulation (AVR). It stabilizes output voltage to protect your electronics over a wide range of mains dips and swells so you can work indefinitely during brownouts and over voltages. UPS is available with universal sockets for easy-to-use connection of protected equipment. Coupled with all the other standard features of the Back-UPS series, the 1100 series are perfect units to protect your productivity from the constant threat of bad power and lost data.

Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Overload protection
Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.

Replace Battery LED
An external Replace Battery LED informs the end-user that the battery needs to be replaced.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Technical Specs

Output
Output Power Capacity: 660 Watts/1100 VA
Max Configurable Power: 660 Watts/0 VA
Nominal Output Voltage: 230V
Efficiency at Full Load: 97.0%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Topology: Line Interactive
Waveform Type: Stepped approximation to a sinewave
Output Connections:
(6) IEC 320 C13 (Battery Backup) IEC 320 C13
(2) IEC Jumpers (Battery Backup)
Efficiency at Half Load: 95.0%

Input
Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:
IEC-320 C14
Cord Length: 1.16 meters
Input voltage range for main operations: 150 - 280V
Maximum Input Current: 5A
Input Breaker Capacity: 10.0 A

Batteries & Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 8 hour(s)
Replacement Battery: APCRBC113
RBC™ Quantity: 1

Dimension
Maximum Height: 215.00 mm
Maximum Width: 130.00 mm
Maximum Depth 336.00 mm
Net Weight: 12.00 KG
